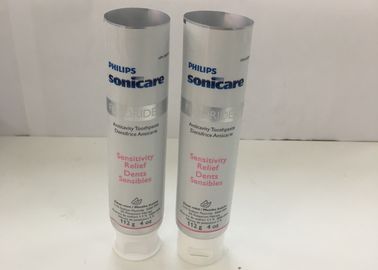

12μ Aluminum Barrier Laminated Toothpaste Tube With Standup Cap

12μ Aluminum Barrier Laminated Toothpaste Tube With Standup Cap

  • 12μ Aluminum Barrier Laminated Toothpaste Tube With Standup Cap
  • 12μ Aluminum Barrier Laminated Toothpaste Tube With Standup Cap
12μ Aluminum Barrier Laminated Toothpaste Tube With Standup Cap
Product Details:
Place of Origin: China
Brand Name: Sanying
Certification: ISO9001,BV,QS
Model Number: Laminated Tube
Payment & Shipping Terms:
Minimum Order Quantity: 50,000pcs
Price: Negotiation
Packaging Details: Inner bag and carton
Delivery Time: 40-45 days
Payment Terms: Irrevocable LC at sight or TT in advance
Supply Ability: 350000pcs/day
Contact Now
Detailed Product Description
Diameter: 38mm Length: 144.5mm
Thickness: 250 Material: ABL250/12
Printing: Offset Printing Web Color: Silver Web
Colour: 4 Colours Varnish: Glossy
Volume: 112 G Shoulder: White Shoulder
Top Seal: AL Top Seal Cap: Flip Cap
High Light:

laminated tube


laminate tubes

Standup Cap Empty 12μ Aluminum As Barrier Toothpaste Laminated Tube Packaging

Laminate is a composite material which forms the complete tube body of laminate tubes. Laminate consists of several PE layers (normally 3 -5 layers) with a barrier layer embedded in between. This barrier layer can be made of different materials, mostly of EVOH or aluminium. There are also laminates without barrier layer. Currently Sanying processes laminates in thicknesses between 220 µ and 425 µ.


The flavour barrier is a constituent of the laminate. It is embedded in between the PE. A flavour barrier fulfils two purposes. On the one hand, it prevents that constituents of the product can escape from the tube. On the other hand, this barrier prevents that critical substances from the environment (such as oxygen) which could affect or change the product penetrate into the tube. The most common barriers are EVOH or aluminium.


Aluminium is used as a so-called flavour barrier in some laminates to prevent constituents of the product from diffusing from the tube. In addition, this barrier prevents substances from outside to diffuse into the tube and to change or spoil the product by reacting with it.

The aluminium layer is embedded between several PE layers. Aluminium offers the highest barrier quality. It is therefore suitable primarily for very aggressive and highly reactive filling goods, like depilatories or shaving creams, silicones, OTC products and perishable food.


★Application of LaminatedTube:


Product Type Contents
Health caring eye cream,body lotion,shaving cream,foot cream,toothpaste,hand cream
Medicine unguent,medical cream,gel
Adhesive Glue super glue,rubber cement,leather adhesive,resin,wood glue,epoxy glue,metal glue,sealant
Industrial Grease brake grease,silicone-based grease,sewing machine lubricating oil,gear grease,red rubber grease,lithium-based grease
Cosmetics eyeliner,lip balm,hair dressing cream,nail beauty products,mascara
Others car body filter, etc



Printing Method:
Offset Printing:
Main printing method is dry offset which enable printing up to 8 colors with gloss, semi-matt and matt finish. We have our ink preparation which give us possibility to meet any color required by customer. In area of graphic preparation we work with external partners to develop designs in line with customer needs.
Silkscreen Printing:
Sanying has all the required contemporary art facilities for screen printing since it is the most preferred compared to other processes such as dye sublimation or inkjet printing because of its low cost and ability to print on many types of surfaces. Screen printing, silk screening or serigraphy is a printing technique that creates a sharp-edged image using a stencil. A screen print or serigraph is an image created using this technique. Screen printing is preferred due to the ability to print on diverse background substrates.

Hot Stamping
The Hot Foil Stamping process is a thermal bonding technique that results in the permanent adhesion of stamping foil to the target surface. Sanying has modern facilities for this highly ornamental and sophisticated process, whereby a metallic foil is applied to the printing substrate through a heated die (also referred to as ‘Foil Stamping’ or ‘Foil Blocking’). Hot Foil Stamping is a type of film that is widely used for creating a decorated sheet, which is then applied to plastic, wood, leather and paper. Hot stamping foil is available in a wide range of unique dimensions, colours and patterns.

Tube Detail:

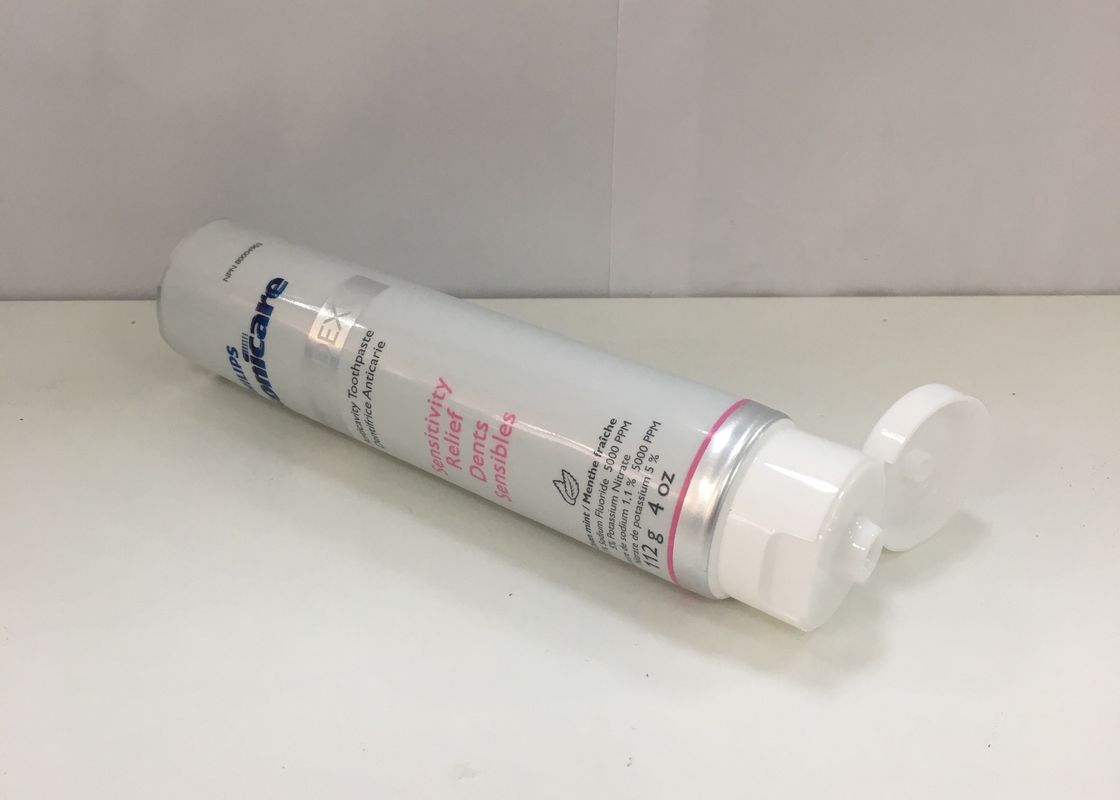

12μ Aluminum Barrier Laminated Toothpaste Tube With Standup Cap 0

★Our Service:
Supply various kinds of ABL,PBL,CAL tube for cosmetic
The material of our products is completely pure and brand new which is environmental friendly.
Panton Colors for tube body and cap are acceptable.
Welcome to Figure&Color proofing.
Customized packing method is acceptable.
We can pre-seal the tube tail,Foil sealed the tube head,screw the cap on the tube as your requirements.

★Artwork Guideline:

When setting up your artwork files, please utilize the Guideline below as a visual reference for how your art should be set up within our die lines. The guideline shows which formats are acceptable for us to receive your art files, and the formula we use to determine allowable print areas for each tube size.

Note, we do recommend the use of an Eye Mark for proper tube sealing when crimping your tubes with your centered artwork. Also take into consideration the use of a barcode on your physical tube. If you would like assistance with this do not hesitate to ask your Sales Rep for direction or testing of the barcode you have chosen to make sure it scans properly.

All art files received must be .ai or .eps, Text Outlined, Vector and sized properly for your specific tube dimensions. If you need assistance with creating your artwork file.


Q:Are you a factory or trading company?

A:We are a factory with export license.

Q:How can I get some samples?
A: We can offer samples to you. Free samples are avaible for new clients.

Q : Do you charge for samples?
A: Samples of products can be provided on requests.A fee will be charged to cover administration, post and package costs of any outdoor supplies samples provided. In addition, certain product samples may be charged for individually depending on the quantity and value of the products requested.Please be advised that neither the price charged for samples, nor the administration and delivery fee is refundable.

Welcome to Sanying:

12μ Aluminum Barrier Laminated Toothpaste Tube With Standup Cap 1
