Alumi Coating Plastic Silver Laminated Web With Silk Screen Printing

Alumi Coating Plastic Silver Laminated Web With Silk Screen Printing

  • Alumi Coating Plastic Silver Laminated Web With Silk Screen Printing
  • Alumi Coating Plastic Silver Laminated Web With Silk Screen Printing
  • Alumi Coating Plastic Silver Laminated Web With Silk Screen Printing
  • Alumi Coating Plastic Silver Laminated Web With Silk Screen Printing
Alumi Coating Plastic Silver Laminated Web With Silk Screen Printing
Product Details:
Place of Origin: China
Brand Name: San Ying
Certification: ISO9001:2008
Model Number: CAL 375
Payment & Shipping Terms:
Minimum Order Quantity: 5000 sqm
Price: Negotiation
Packaging Details: 1.13m*1.13m pallet PE wrap film
Delivery Time: 20~30days
Payment Terms: L/C, T/T
Supply Ability: 500000 sqm per month
Contact Now
Detailed Product Description
Material: Coating Alumi Plastic Laminate Material: Coating Alumi Plastic Laminate
Color: Silver Color: Silver
Thickness: 375um Thickness: 375um
Length: 600m Per Roll Length: 600m Per Roll
Barrier: Coaing Aluminum PET Foil Barrier: Coaing Aluminum PET Foil
Printing: Silk Screen Printing: Silk Screen
High Light:

plastic laminated tubes

,

laminate tubes

Alumi Coating Plastic Silver Color Laminate web for Cosmetic Tube Packaging With Silk Screen Printing



★Usage:
 Kinds of toothpaste tube, food tube, pharmaceutical tube, industrial and cosmetic tube etc.



★Thickness ( μ)

Thickness: 200/AL12; 220/AL12; 250/AL12; 275/AL12; 258/AL20; 275/AL20; 325/AL9; 375/AL9; 425/AL9



★Width (mm) 45~800



★Length (m) 600~850



★Material: CAL— Coating alumi plastic lamination, aluminum as a barrier



★Feature:


Avirulence, hygiene, seal airtight, excellent barrier of air, water and fragrance. Easy to squeeze, sterilized with long shelf life, fine shading, fine burst-resist. Smooth in surface, rich colored, easy transfer, fulfill the different industry requirements.



  1. Our laminate machine is a world leading equipment form Germany Davis-Standard that ensures the stable quality of interlaminar strength. Delamination and uneven thickness issues can be reduced greatly.
  2. Our blow film machine is from Germany W-H, a world advanced equipment as well. Gel eye, burnt point and other quality problems can be improved effectively.
  3. Our resin material is from Dow and DuPont and other top brand names. The performance is more stable and very few impurities, which obviously improve the quality of film.
  4. Our sanitation of production is managed strictly, main workshop is full isolated and built according to GMP 100,000 level, so, our plant is first-rate in China.
  5. We have nearly 30 years of technical experience. Production technology stay ahead of other enterprises in China.
Item Standard
Appearance 1.The defects of perforation,foreign material,unsymmetrical covering flux,lamination layer peeling off,obvious damnification,bubble,wrinkle and smudginess are not allowed.
2.Printing in focus ,integrity,tinct uniformity and not aberration.
Size Discrepance Reel width:±1.0mm
Thickness Tolerance :1±7%um
Peel Strength (N/15mm) PE/PE-Copolymer>=6.0N/15mm
PE-Copolymer/AL>=6.0N/15mm
AL/ Copolymer-PE>=6.0N/15mm
Co-polymer-PE/PE>=6.0N/15mm
Reel characterisics and packing Reel winding outer layer outside Core length same as the reel width Tolerance:+1mm
Reel dimensions Reel length Meter/Reel.Tolerance:+ 2%
Joins Tape on both sides, edge to edge(Butt joint)
Adhesive tape heat resistant red color, width 50mm. Number single reels max.3 joins,per reel average max2 joins per reel based on 800Meter/Reel.
Identification Reel label inside core, Indicate with Order, number/slit reel number/reel length/reel width/product date. One piece reel sample on out carton box.
Packing Reels wrapped with polyethylene film and stack in wooden or plastic pallet, or as per customer requirement.

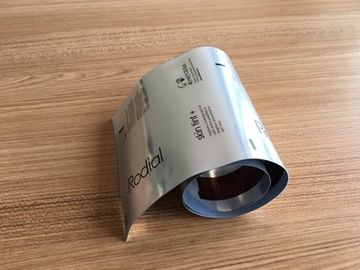

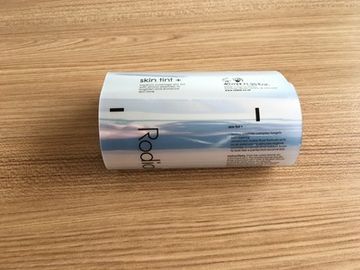

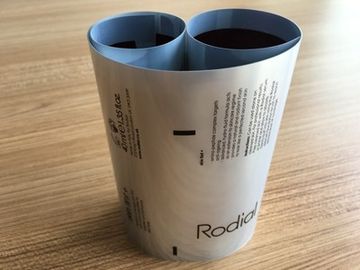

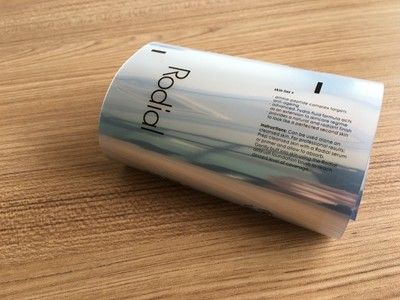

Alumi Coating Plastic Silver Laminated Web With Silk Screen Printing 0

Alumi Coating Plastic Silver Laminated Web With Silk Screen Printing 1

Alumi Coating Plastic Silver Laminated Web With Silk Screen Printing 2
